G-PLUS AN-10AN 13 Row Universal Engine Transmission Oil Cooler + Filter Relocation Kit English Style

Brand: G-PLUS

Color: Black 13 Row English-style

Features:

• COMPATIBILITY:This is a universal oil cooler kit,Compatible with all models
• INLET/OUTLET SIZE: AN-10; Core Size: 11.5" x 3.6" x 2.00"; Overall Size: 13" x 5.0" x 2.00".
• DURABILITY AND PROTECTION: Keeping the oil temperature low helps to improve the lubrication effect of the oil and prevent parts from being damaged or even stuck in the engine. It can be used to cool engine oil, transmission, and rear differential.
• ADVANCED PROCESSES：This product is manufactured by advanced technology to meet your needs in terms of model and size
• PACKAGE INCLUDES: Comes with 3 Oil Lines(Lengths:1.2M, 1.4M, 1.6M),1 Hose Separator and 1/8" NPT Threaded x 1. If you have any questions, please feel free to contact us.

Part Number: 02EGZ0008ABK

Details: Title: 13 Row 10AN Engine Transmission Oil Cooler + Filter Relocation Kit

Applications: Universal

Color: Black

Specifics and Benefits:

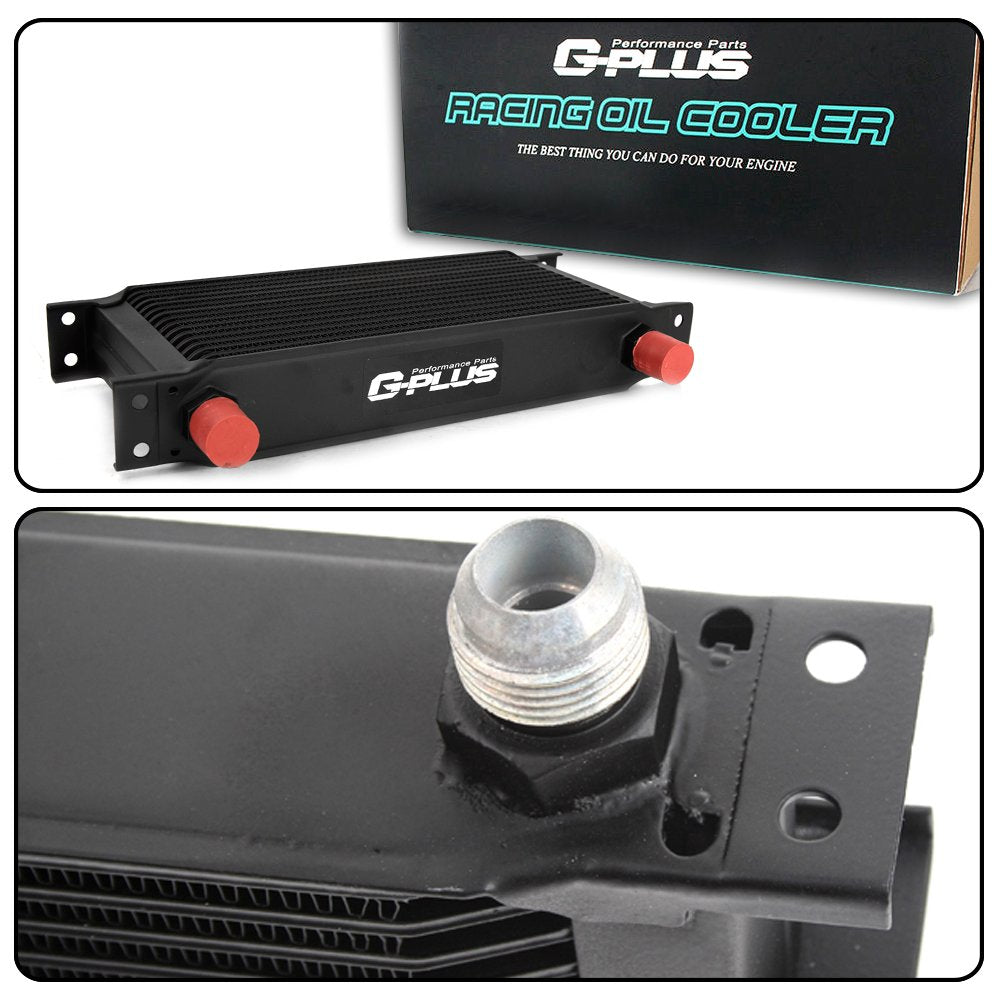

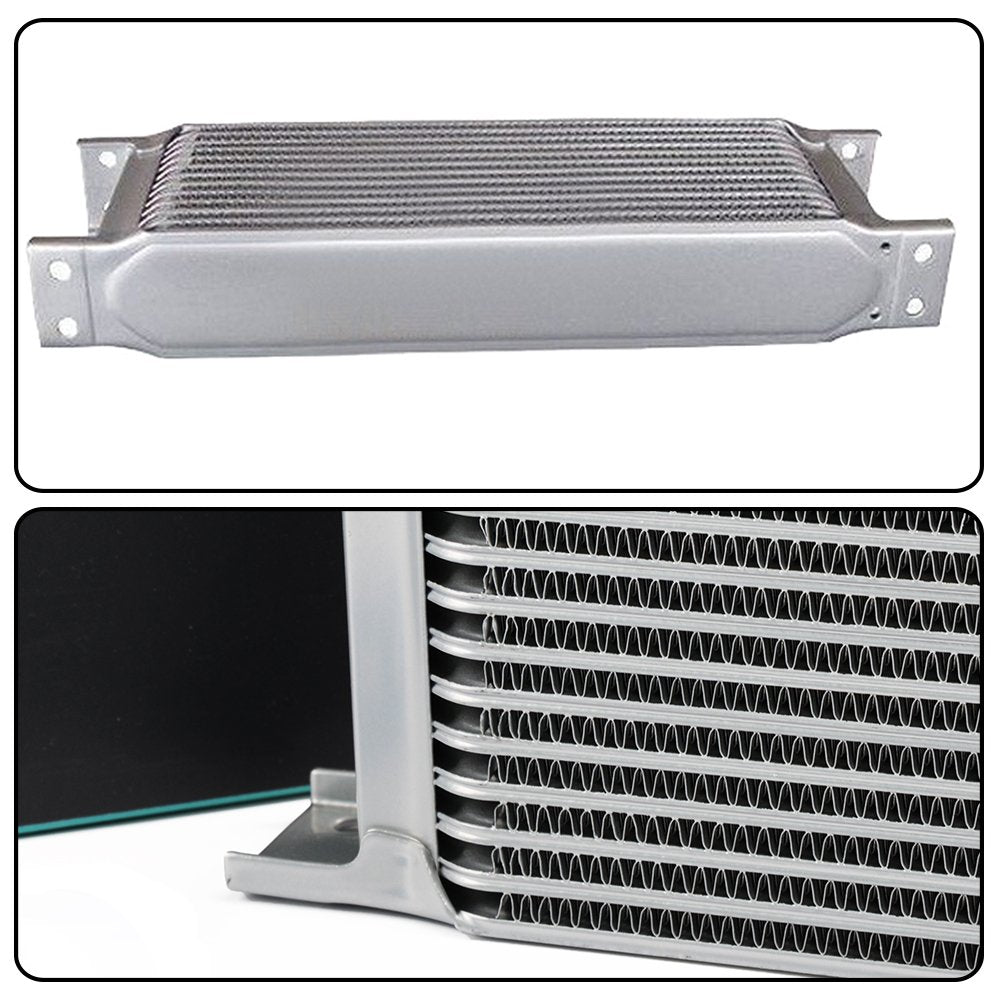

About the Oil Cooler:

Inlet / Outlet Size: AN-10

Core Size: 11.5" x 3.6" x 2.00"

Overall Size: 13" x 5.0" x 2.00"

Made with High Quality T-6061 Aluminum

Potentially Reduces Oil Temperature up to 50°F

Powder-Coated and Oxidized for Durability and Protection

Helps Reducing Coolant Temperature and Extends Engine Life

Excellent for Modified Street Vehicles, which are Driven Hardly with Minimal Track Use

Professional Installer is Highly Recommended (No Instruction Included)

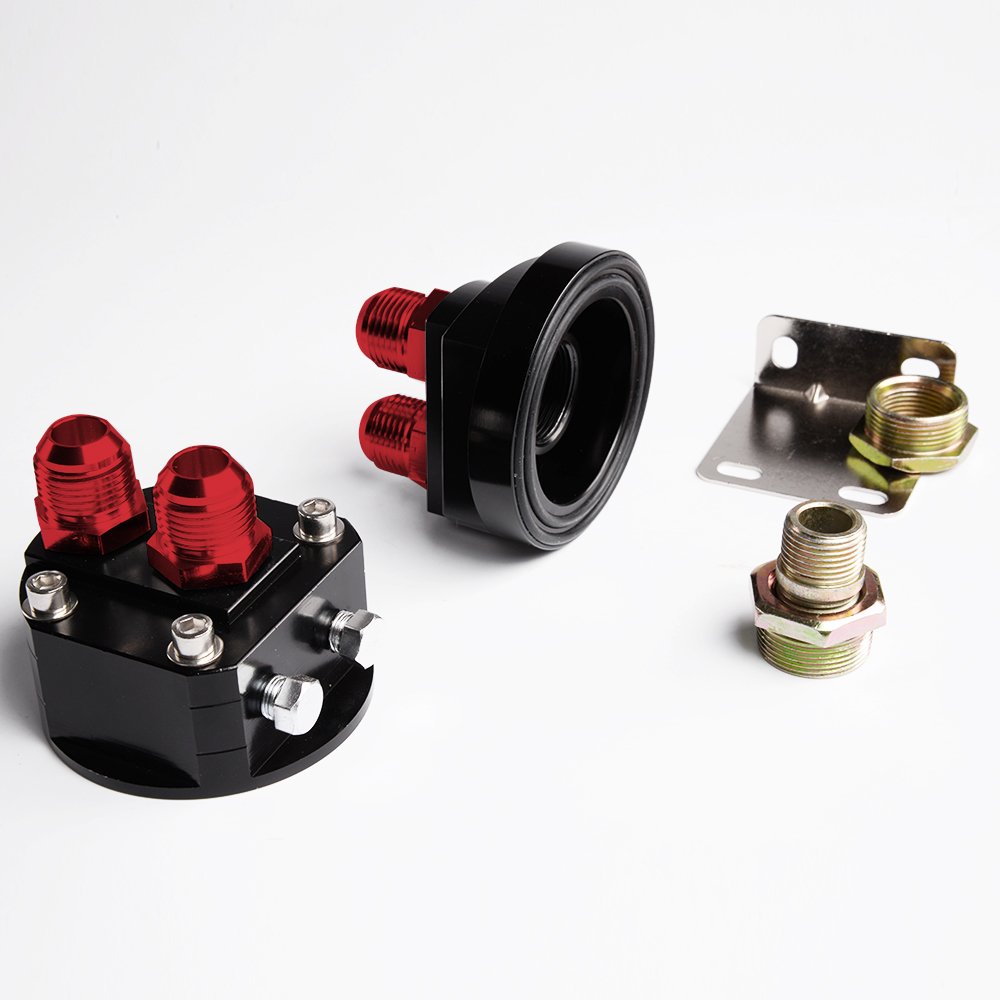

About Filter Adapter:

Center Adapter: M20 x 1.5 & 3/4 x 16 UNF Thread

Supports Oil Filters That Has M20 Thread & M20 Block Fitting

It Mounts between the Block and oil Filter, provides in and out ports, with connectors that fit AN10 fitting

About Oil Lines:

Allows Installation of Larger Oil Filter

Comes with 3 Oil Lines（Lengths: 1.2M、 1.4M 、1.6M）

10-AN Male Fitting and 0.875" x 12.125" Bolt Pattern

Made of High Quality Lightweight Aluminum with CNC Laser Cut

Oil Filter Relocation for Easier Access, a Must for Hard-To-Reach Oil Filters

Increases Engine Oil Capacity Available; thus, Enhances Oil Lubrication and Protection of Engines

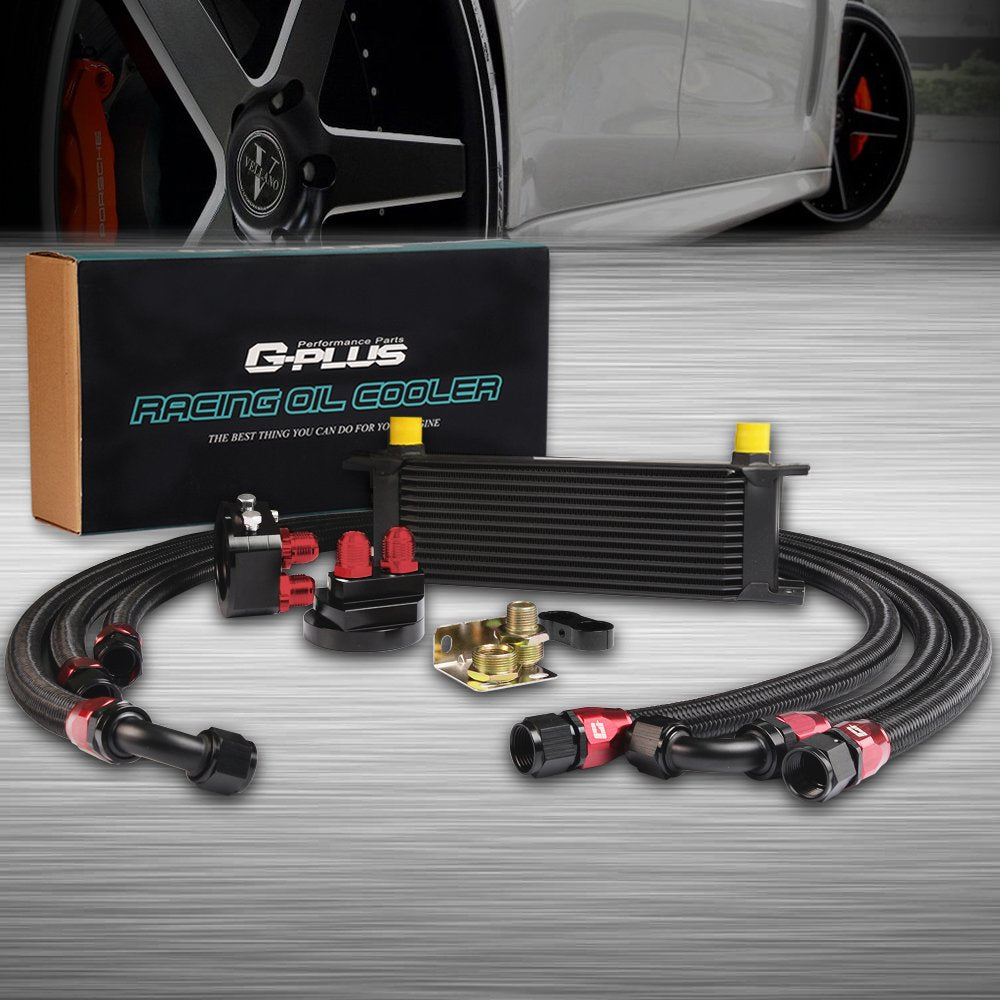

Package Includes:

3/4-16 Female Fitting *1

M20XP 1.5 Female Fitting *1

GPLUS Oil Filter Adapter* 2

GPLUS Aluminum Oil Cooler *1

10-AN Hose Line Separator *1

10-AN 0 Degree Swivel Aluminum Hose End *4

10-AN 90 Degree Swivel Aluminum Hose End * 2

GPLUS Braided Nylon Hose*3 (47" *1 + 56" *1 + 62" *1 )

Tracking Number: Yes

EAN: 0710560043217
