28 Row 10AN Universal Aluminum Engine Transmission Oil Cooler Kit+ Oil Filter Relocation Kit Silver

Brand: G-PLUS

Color: Silver/ 28 Row

Features:

• COMPATIBILITY:This is a universal oil cooler kit,Compatible with all models
• Center Adapter: M20 x 1.5 & 3/4 x 16 UNF Thread
• Supports Oil Filters That Has M20 Thread & M20 Block Fitting
• Comes with 3 Oil Lines（Lengths: 1.2M 、 1.4M 、1.6M）
• 10-AN Male Fitting and 0.875” x 12.125” Bolt Pattern

Part Number: 02EGZ0011ASL

Details: Title: 28 Row 10AN Engine Oil Cooler + Filter Relocation Kit

Application: Universal

Color: Silver

Description:

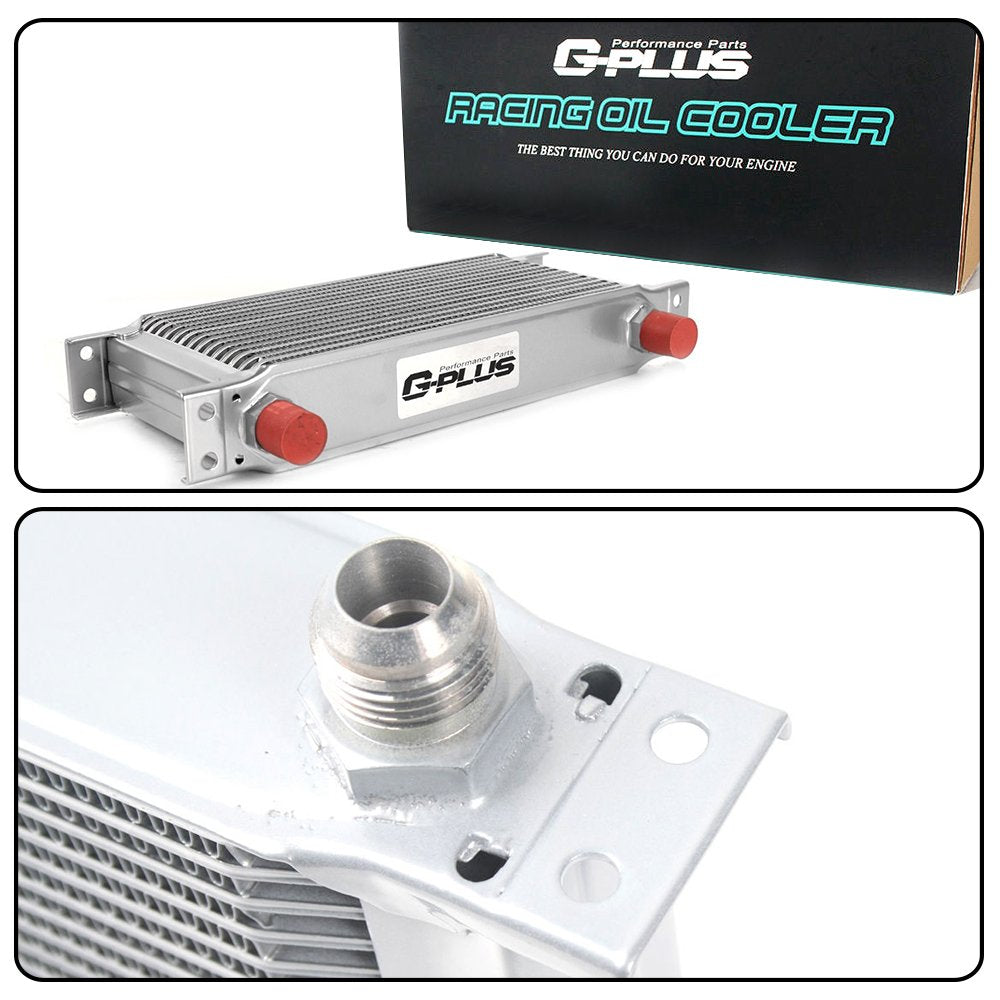

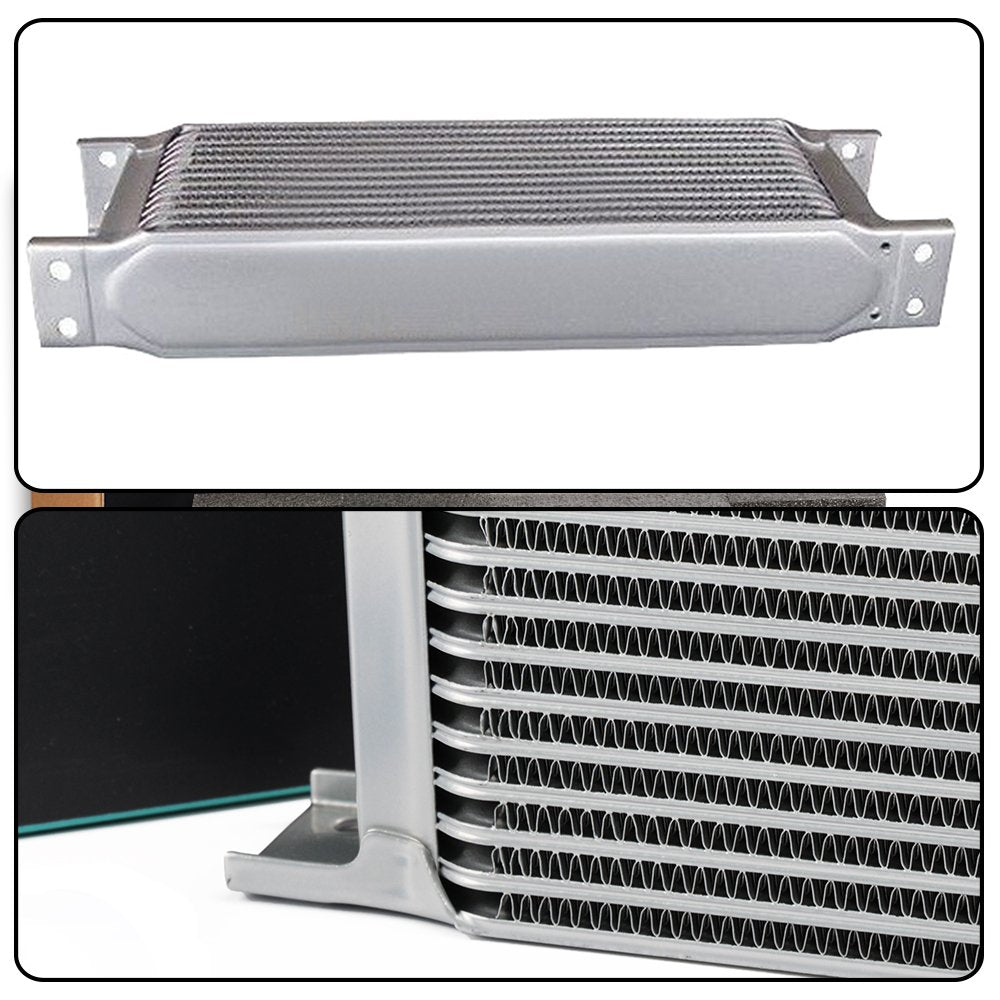

About the Oil Cooler
Inlet / Outlet Size: AN-10

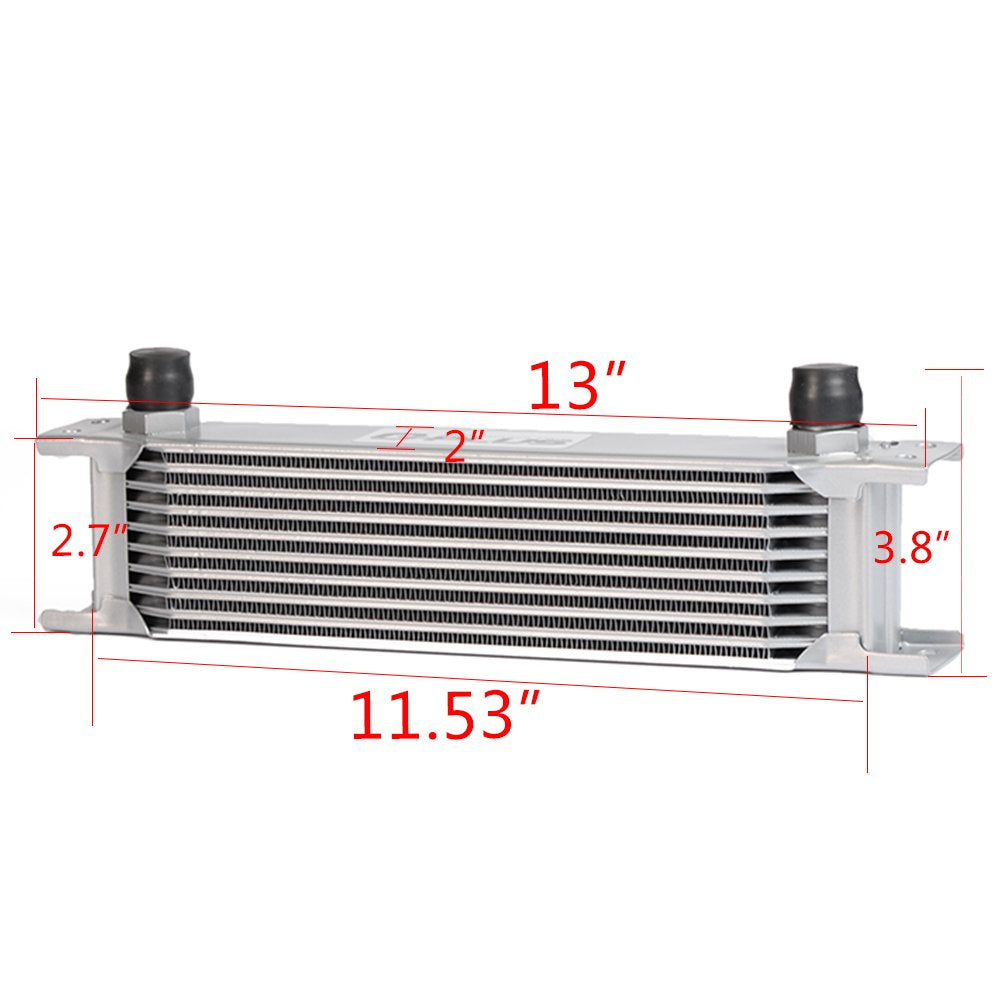

Core Size: 11.53" x 8.0" x 2.00"
Overall Size: 13" x 9.2" x 2.00"
Made with High Quality T-6061 Aluminum
Potentially Reduces Oil Temperature up to 50°F
Powder-Coated and Oxidized for Durability and Protection
Helps Reducing Coolant Temperature and Extends Engine Life
Excellent for Modified Street Vehicles, which are Driven Hardly with Minimal Track Use

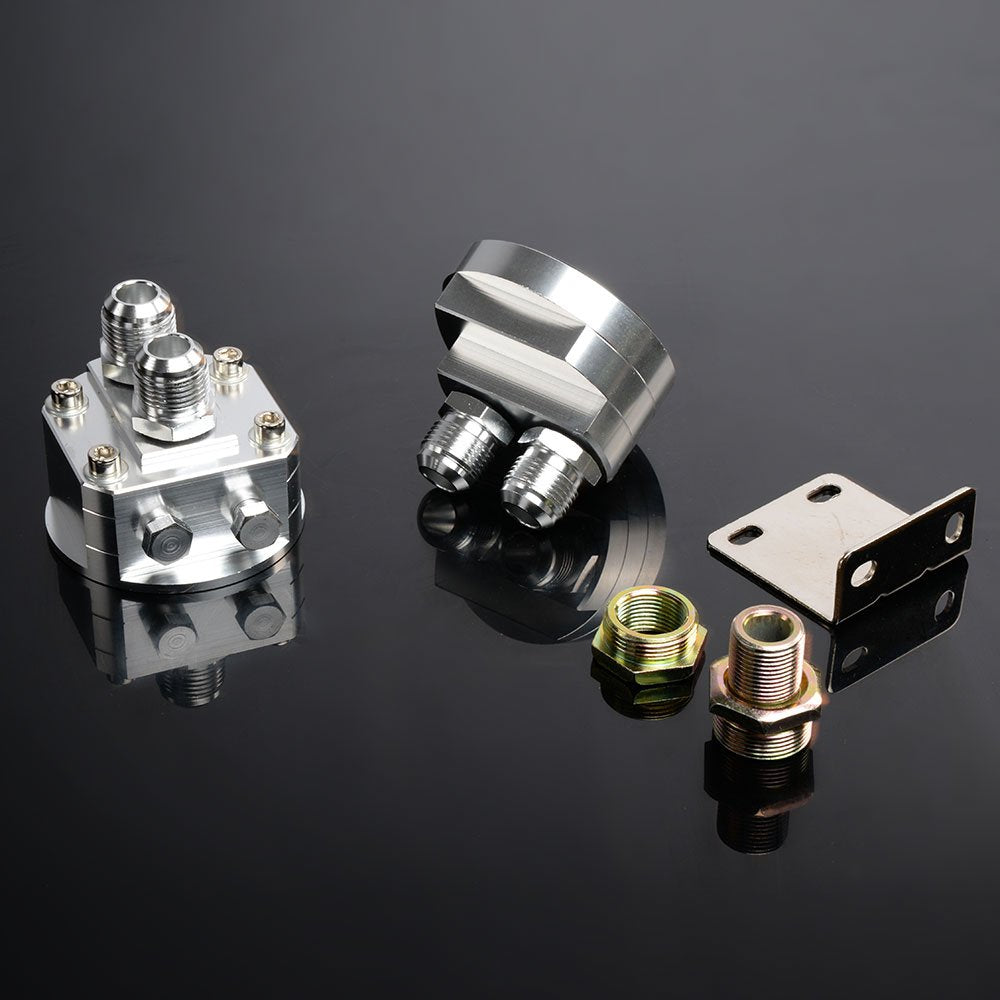

About Filter Adapter
Center Adapter: M20 x 1.5 & 3/4 x 16 UNF Thread
Supports Oil Filters That Has M20 Thread & M20 Block Fitting

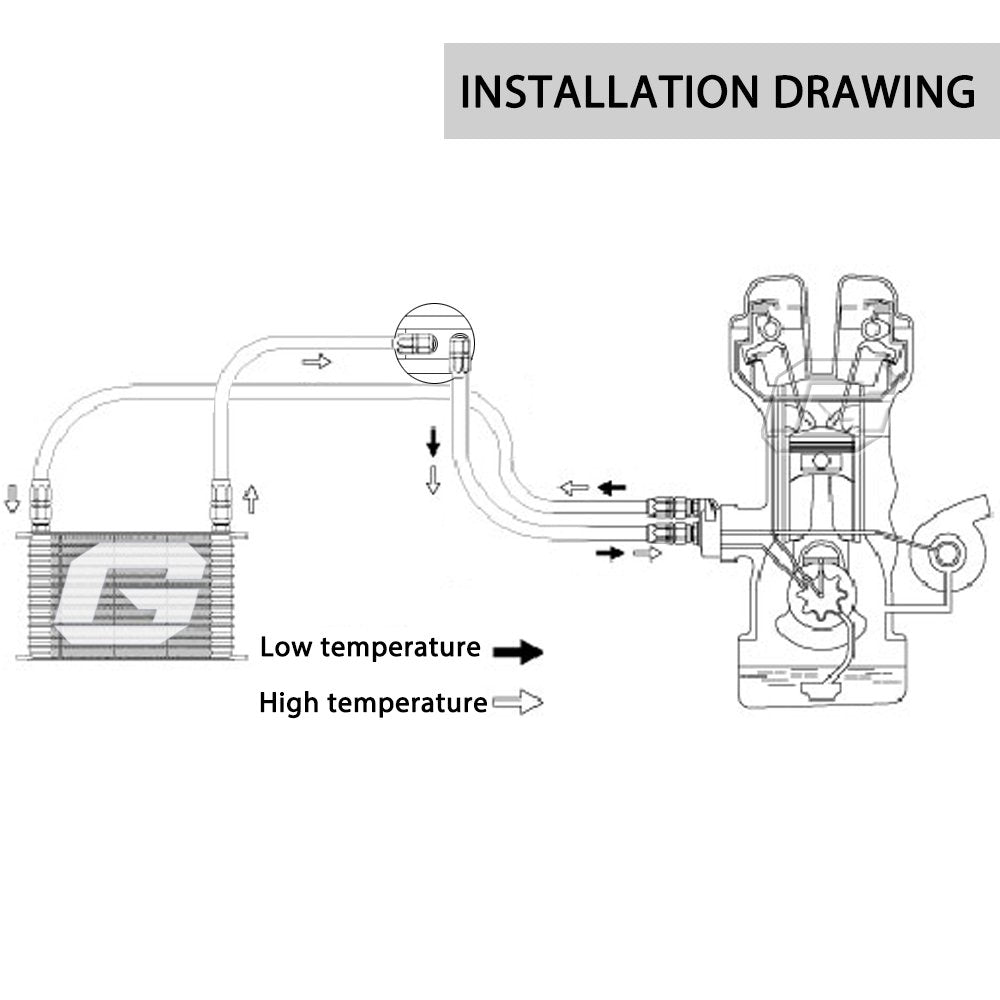

It Mounts between the Block and oil Filter, provides in and out ports, with connectors that fit AN10 fitting

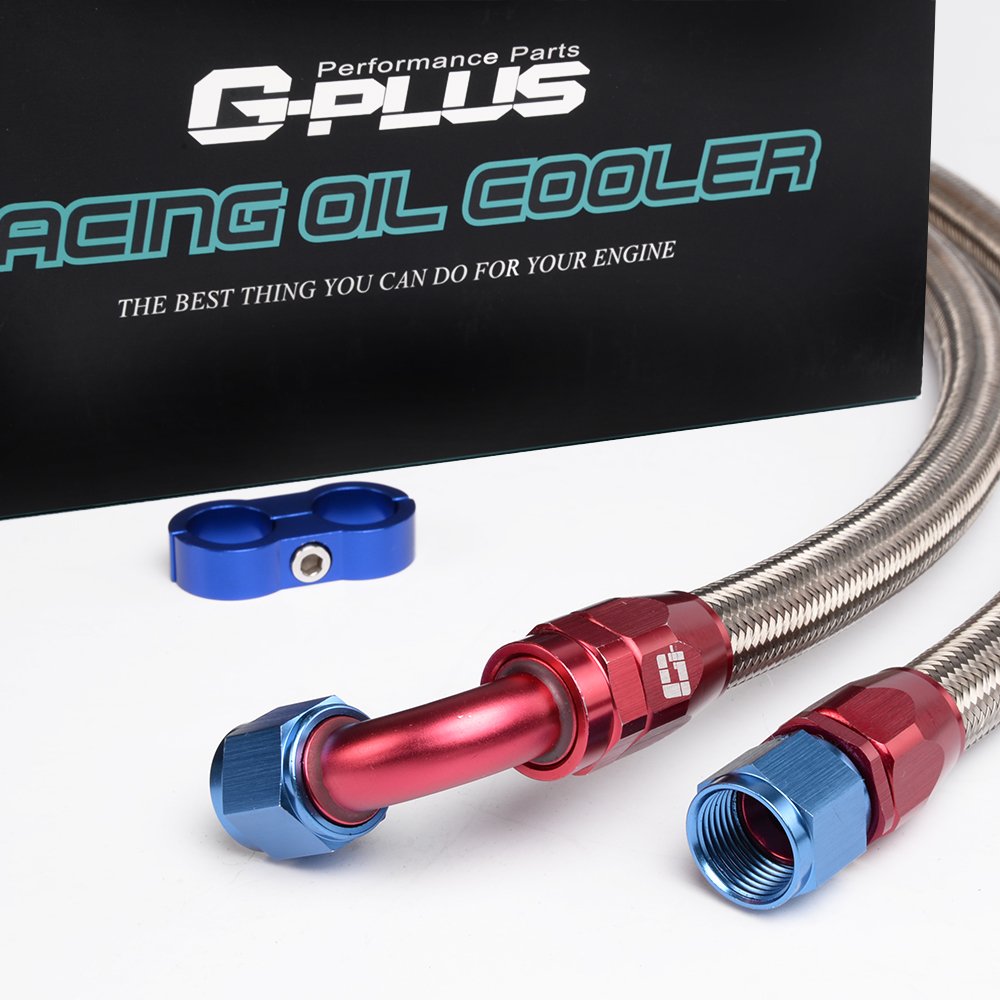

About Oil Lines
Allows Installation of Larger Oil Filter
Comes with 3 Oil Lines（Lengths: 1.2M 、 1.4M 、1.6M）
10-AN Male Fitting and 0.875" x 12.125" Bolt Pattern
Made of High Quality Lightweight Aluminum with CNC Laser Cut
Oil Filter Relocation for Easier Access, a Must for Hard-To-Reach Oil Filters
Increases Engine Oil Capacity Available; thus, Enhances Oil Lubrication and Protection of Engines

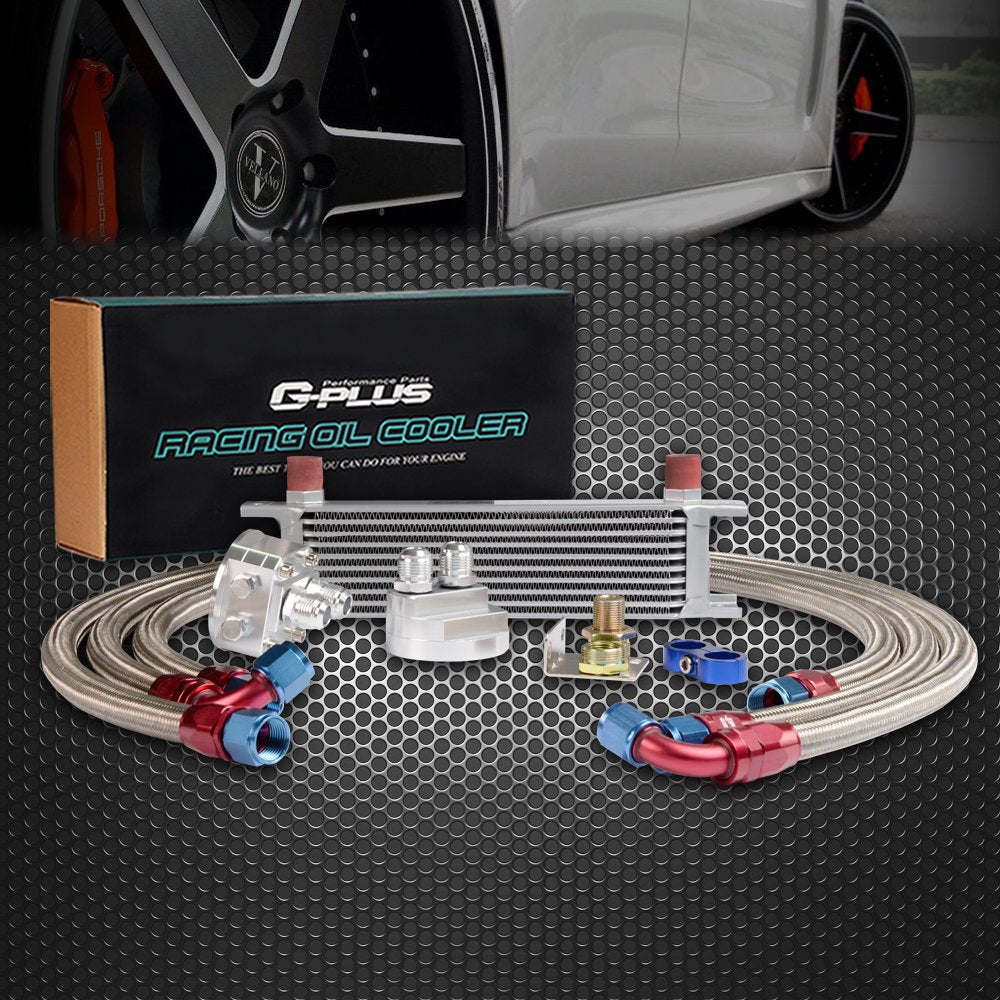

Package Includes:
3/4-16 Female Fitting *1
M20XP 1.5 Female Fitting *1
GPLUS Oil Filter Adapter* 2
GPLUS Aluminum Oil Cooler *1
10-AN Hose Line Separator *1
10-AN 0 Degree Swivel Aluminum Hose End *4
10-AN 90 Degree Swivel Aluminum Hose End * 2
GPLUS Braided Stainless Steel Hose*3 ( 47"*1 + 56" *1 + 62" *1 )

EAN: 0740030319511
